Atheros AR5BCB-00022 (D-Link)

Atheros AR5BCB-00022 (D-Link)

FCC approval date: 03 October 2002

Interface: PCMCIA (32-bit)

ID: 168c:0012 (6 addl. devices) SS: 168c:1022
Windows: PCI\VEN_168C&DEV_0012&SUBSYS_1022168C

FCC ID: KA22002040012-1, PPD-AR5BCB-00022

Chipset: Atheros AR5001X

WI1 chip1: Atheros AR5211

WI1 chip2: Atheros AR5111

WI1 chip3: Atheros AR2111

Probable Linux driver
ath5k (in backports) or madwifi
PCI ID first seen in kernel v2.6.25 (2008-04-17)
(see also passys)

Antenna connector: none

ab

OUI: 00:05:5D (2 E, 14 W)

	FCC ID
D-Link DWL-AB650	KA22002040012-1 PPD-AR5BCB-00022

	FCC ID
Actiontec 802CAG	LNQ802CAG PPD-AR5BCB-00022
Atheros AR5BCB-00022	PPD-AR5BCB-00022
D-Link DWL-AB650	KA22002040012-1 PPD-AR5BCB-00022
Gemtek WL-571	PPD-AR5BCB-00022 MXF-C911001AB
Gigabyte GN-WLMA101	JCK-GN-WLMA101 PPD-AR5BCB-00022
Linksys WPC51AB	PPD-AR5BCB-00022 PKW-WPC51AB
Linksys WPC55AG v1.0	PPD-AR5BCB-00022 PKW-WPC55AG
Netgear WAG511v1	PY3WAB501 PPD-AR5BCB-00022
SMC SMC2335W	JI5SMC2335WR PPD-AR5BCB-00022
SMC SMC2336W-AG	JI5SMC2335WR PPD-AR5BCB-00022

	Chip1 brand	Chip2 brand
Atheros AR5BCB-00022	Atheros	Atheros
Atheros AR5BCB-00022 (D-Link)	Atheros	Atheros

For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.

---

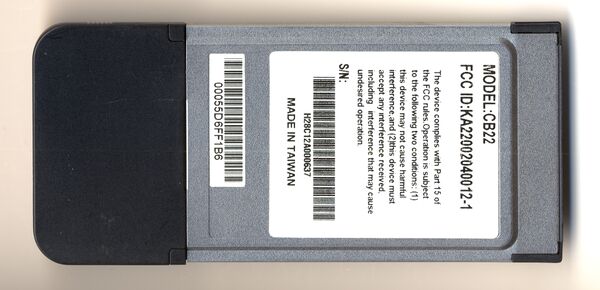

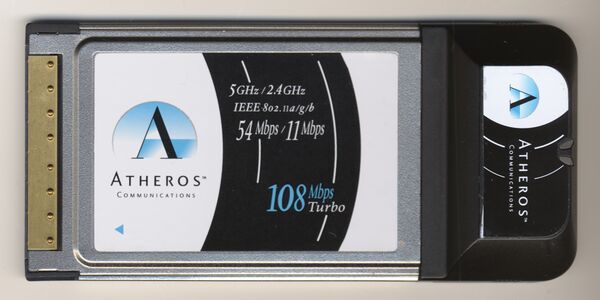

This device, an engineering sample for private use, shares the same FCC ID as the D-Link DWL-AB650 and also has a D-Link OUI.

lspci -nnv dump

06:00.0 Ethernet controller [0200]: Qualcomm Atheros AR5211 Wireless Network Adapter [AR5001X 802.11ab] [168c:0012] (rev 01)
        Subsystem: Qualcomm Atheros Device [168c:1022]
        Flags: bus master, medium devsel, latency 168, IRQ 19
        Memory at f1d00000 (32-bit, non-prefetchable) [size=64K]
        Capabilities: [44] Power Management version 2
        Kernel driver in use: ath5k

ath5k info dump

ath: EEPROM regdomain: 0x10
ath: EEPROM indicates we should expect a direct regpair map
ath: Country alpha2 being used: CO
ath: Regpair used: 0x10
cfg80211: Calling CRDA for country: CO
ath5k: phy7: Atheros AR5211 chip found (MAC: 0x42, PHY: 0x30)
ath5k: phy7: RF5111 5GHz radio found (0x17)
ath5k: phy7: RF2111 2GHz radio found (0x23)

Images
